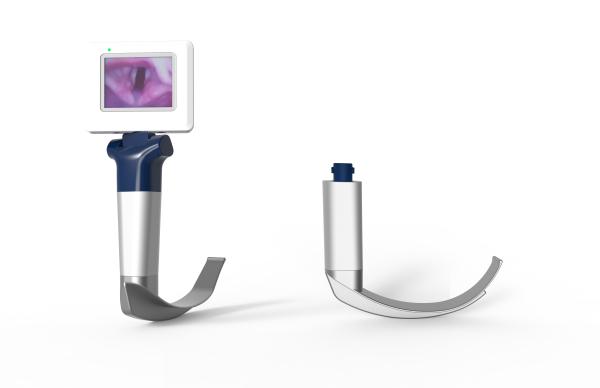

316 Medical Stainless Steel Blade Laryngoscope With Flexible Tip Curved Difficult Airway Blade
Application range:
Conventional and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, ENT ,ambulance etc.
Clinical training and teaching of tracheal intubation.
Definition of Difficult Airway:
the clinical situation in which a conventionally trained anesthesiologist experiences difficulty with mask ventilation,difficulty with tracheal intubation or both.
common risk factors associated with difficult airway:
| History previous noted difficulties | Large Tongue |
| Male | Receding Jaw |
| Age 40~59 | High Arched Palate |
| Diabetes | Prominent uppers |
| Acromegaly | Short thick Neck |
| Rheumatoid arthritis | Fixed or "high" larynx |
| Obstructive sleep apnea | Mouth opeaning <4cm |
| Head and neck surgery,radiation | Mallampati class 3 or 4 |
| Upper airway trauma,burn or swelling | Reduced head/neck |
Features:
Detachable and Battery rechargeable,all android usb cable is suitable for battery charge
Three blade Miller 0 ,Mac1, Mac2, Mac4, Mac 5,difficult airway blades suitable for different people.
High Resolution Camera and Low temperature LED light source
Special blade design more confortable for patient, more suitable for all size endotracheal tube.
Camera resolution:640*480. Ture color can get a good view of the glottis.
Fully premium quality surgical grade stainless steel(non-magnetic)
provide strength and durability plus it is easy clean and disinfect
BESDATA brand 3 material blades(stainless steel / PC / metal) can be used with same 1 monitor
CE and ISO13485 approved
private label and OEM design are acceptable
Specifications:
| | | |
| | Display | 2.5"(LCD) |
| Monitor Resolution | 640X480, 0.3Mpixels |
| Rotating angles of the monitor in front and rear | 0 º~130 º |
| Rotating angles of the monitor in right and left | 0 º~270 º |
| Angle of vision | ≥60º |
| Power consumption | <2W |
| | Blade type | reusable |
| Blade material | stainless steel |
| Blade size | 6 sizes |
| | Power | 3.7V lithium battery(1 time charging can be used 250 minutes) |
| service life | charging > 300 times |
| Discharging time of battery | >1 h |
Package: customized suitcase.
Delivery speed:5~7days after we confirm the orderThe term of warranty: 1 year.
our related products:
PC material video laryngoscope
